Wiring Diagram for Time Out Trailers... Plug is five wire round... See photo below right. Yellow ~ Left turn Green ~ Right turn Brown ~ Running Red ~ Brake White ~ Ground SEE OTHER INFO BELOW... Video Set Up... GO TO: www.timeouttrailer.com for video of set up or ... will be 3rd. button down... Camper set up video... www.mctrailers.biz Both have video...Both are also my web sites... NOTE: The photo top right shows four jacks down and roof rack set up to be support for the floor... In less than 3 minutes will look like second photo down on right... See 4-wire wiring below...

From above photo to this in 3 minutes... With total off the ground camping with seperate sleeping, dinning and dancing {storage}area... Choice of black or white trailer, both campers... Choice of grey, blue or red stripe on sides of the Timeout "Big One" Camper if wanted... Notice the 5 different pin stripe shades on both the red and grey shown... Blue is also the same way... HITCHES, see bottom link on right side for a list of over 900 hitches...

Wiring Diagram for Time Out Trailers... Yellow ~ Left turn Green ~ Right turn Brown ~ Running Red ~ Brake White ~ Ground Numbers is what is on plugs... With proper wire color to it... Signal and light(s) on right of it are for trailer lights... Always best to take the white wire at bike end directly to battery with proper ring terminal... Quick connect terminals work IF they are not in direct moisture... It's best to wire under seat when you can... Connect the trailer wire harness from back bumper, follow the frame up and secure wires with tie raps... Enter wires under seat. Always connect colored wires to proper wires on bike behind last plug connector going out to the fender lights...

Camper Trailer LED Lights Are Supper Bright... Photo on right is optional $49.99 plug for Harleys that can be used so you do not have to splice wires under the bike seat... This is a no brainer plug... Fits in between existing plug there... Available for Goldwings also... See option page... Two types...

5 wire trailer plug on right is both ends together... A set as shown is $20.00 or $10.00 per plug. Bike end with 4 feet of wire add $10.00 NOTE: ALL Timeout and Cyclemate trailers have 5-wire trailer plug on trailers. ALL Timeout and Cyclemate trailers have bike end plug with apx. 4 feet of wire included with their trailers... {Some companies do not and usually don't tell you.}

Trailer plug on right is 5 wire seperated... Set as shown is $20.00 Each is $10.00 The #11-502 is the bike or car end... it is oblong and has two mounting holes for a bracket that can be bought at a good RV dealer... Hope to have the brackets available soon...

WIRING 4 -WIRE PLUG on Bike to 5-Wire trailer... 1- You will need a flat 4 plug on trailer replacing the 5-wire... 2- Will need to change yellow signal lights to red... 3- Bike plug should be connected with white wire to bike ground, I perfer to battery... 4- Bike yellow is left turn,. Bike green is right turn and Bike brown is running... NEXT the Trailer... 1 Cut off 5-wire plug... Install 4-wire plug with in line butt crimp splice with heat shrink over it... 2- Connect white to white. NOT to trailer. White is the ground for lights... 3- Yellow to yellow. 4- Green to green. 5- Brown to brown. 6- Red wire Does Not get connected to anything... Be sure it's taped... Read On...

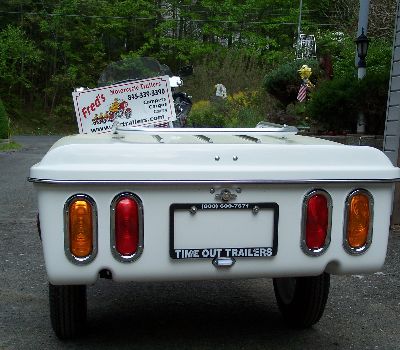

This is the way the trailer lights will now work... The red lights are now only running lights... The yellow lighs are now both stop and signal lights ... Both yellow lense as on right trailer will now have to be changed to red... Or light will need to be changed to red if a sealed oblong light like above or round light like below is on trailer...All States, brake light must be red... IF left signal is on and brakes at same, the signal will flash and opposite lite will stay on, on the outside lights... The inside red lights is now only running lights... Lights will not work if #6 above red wire is connected in any way... Important Notes: 1- I use in line crimp found at any automotive or department stores, as well as heat shrink... 2- Try and use greese filled style crimps... If you can.t, than put a little greese on wires, or vaseoline... 3- Greese keeps moisture from wires which saves problems later... 4- Sleeve heat shrink on wires before crimping... 5- If no heat shrink, than tape with good plastic tape... 6- All States and Canada... Yellow can not be used for stop lights... That is why lights have to be changed to red from yellow or amber...

Personnally I perfer trailer 5-wire plug left as bought... the original yellow lights is much more visible than red... I would add the 5-wire trailer bike plug to the bike... If you have another trailer that is only 4-wire or a side car you would need a 5-wire converter found at Walmart for $15.00 and another 5-wire trailer end plug... The converter has a built in 4-wire plug on it for trailer... Just add the 5 wires to the other 5-wire trailer plug... The converter tells you how to wire to 5-wire plug on top of page... Basically the converter plug is a small in line cord between the 5-wire plug and 4-wire trailer or side car, which comes off when done trailering... This saves two trailer plugs by bike trailer hitch...
