Time Out Trailer's
"ION" Trailer


- Time Out Trailers has added two red lights each side for added visibility...
- Can be used on bike 5-wire included or plug into car/truck four wire plug and all lights will work with no modification...
- All photo's with single lights in back are left on this page for overall look of the trailer...
- Most photo's on this page has single light's... They Do come with two LED lights on each side as black trailer shows...
`
|
 |
|
| |
|
Standard features:
- One piece durable fiberglass body...
- 700 lb Torsion Bar Axle...
- License Plate Light...
- Black or White Paint or Gel-coat Primer...
- Interior light 12v.
- Oval Twist Lock Handles with Hidden Key Lock...
- Stainless Steel Hardware...
- LED tail lights with chrome trim... Deck mount LED brake light.
- Side marker LED lights...
- Steel frame, aluminum a option...
- Jack stand...
- 23.3 cubic feet of cargo area..
- 5-wire flat wire harness...
- Four Cargo Tie Downs inside...
- 1 7/8 coupler...
- White Steel Wheels...
|
|
|
| |
|
Trailers are black or white with white wheels, chrome center caps with chrome lug nuts...
Note:
- The black trailer has optional chrome wheels...
- Popular with black trailers...
- White trailers look good with either white spoke wheels...
- All trailers look great with aluminum wheels...
`
`
`
`
|
|
|
| |
|

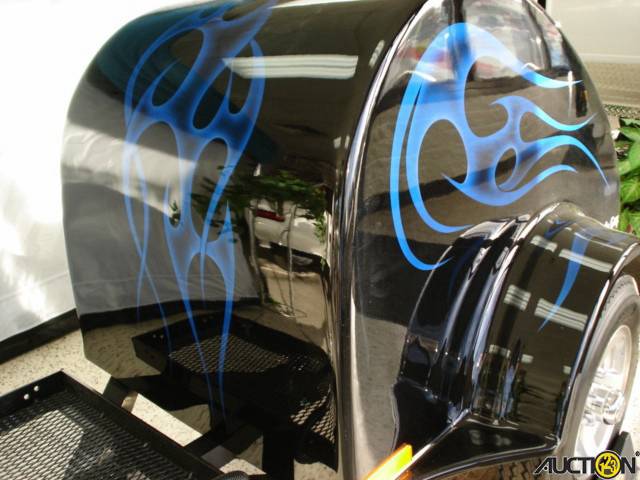

Trailer below is a nice two tone paint job tastefully done...
|
|
|
| |
|
Trailer has a built in place for a spare tire, optional...
|
|
|
| |
|
"ION" goes good with trikes, nice combination...
- ION - Trailer comes White, Black Paint or Gel-coat Primer... Shown with optional cooler bracket on the front, ready for your provided cooler...Notice side mounted included jack stand...
- ION - Trailer as showh on right with white wheels and steel frame.
`
`
`
`
|
|
|
| |
|
Specification ~~ ION Trailers
| Trailer Discription |
Area or size |
| Cargo Space |
23.3 Cubic Feet |
| Chassis |
Steel, Aluminum optional |
| Body, exterior |
48" x 44" x 28" {L x W x H} |
| Empty Weight |
240 pounds |
| Lights |
LED with 3rd Brake Light |
| Wheel size |
12" x 4.5" |
| Tire size |
5.30-12 LRC |
| Axle |
Torison suspension 1000 lb rating |
| Overall length |
91" long 41" high 44" wide |
| Hitch weight |
30 lbs |
| Max load rating |
760 lbs. Vehicles |
| Max load, bikes |
450 lbs |
| Tongue weight |
23 lbs |
| |
|
| |
|
SHIPPING OPTIONS:
- Shipped by truck to a business or terminal recommended
- Business Must Have loadig dock or Fork Lift...
- A drop gate to residence can be $90.00 more than to a business or terminal pick-up...
- Need to get quote weekly for shipping...
|
|
|
| |
- Need City, State and Zip Code for shipping price...
All "ION" trailers have two lights each side. All LED....
|
|
|
| |
|
Fiberglass is very thick and is a solid well made trailer...
Trailer in general is a very well made trailer for both the touring bike, small car and truck...
Goes good with trikes and classic cars also...
|
|
|
| |
|
Trailer Prices on Prices and Options Page 6th menu button on right side.
To Order Please Call...
Thank You and see you on the next page...
Karen & Fred Burger...
`
|
|
|
